CLICK TO SWITCH TO   ANB's Power Hacksaw Blades are manufactured in a wide range of dimensions and tooth pitches from HSS DMo5, EMo5 and HSS Bi-Metal. click to enlarge   ANB's Power Hacksaw Blades can be supplied with normal and positive rake angle. Some basic information has been listed in below table. click to enlarge WHEN ORDERING please indicate below information: Description Example Blade size (length x width x thickness) 450 x 40 x 2,0 mm Tooth pitch (T.P.I.) 8 T.P.I Rake angle positive Blade quality HSS DMo5 Quantity 20 pieces Ordering example: 20 pieces HSS DMo5 Power Hacksaw Blades 450 x 40 x 2,0 mm 8 T.P.I., positive rake angle OR... Just advise your machine manufacturer, machine model and all relevant details on the material to be cut, like: - Steel respectively metal grade   (e.g. Werkstoffnummer acc. to DIN: 1.0037) - Temper / Hardness   (e.g.: annealed / e.g. Brinell or Vickers or Rockwell) - Shape / Dimensions   (e.g.: Tube / e.g. diameter x wall: Ø 137 x 8 mm) We will supply the most suitable blade.

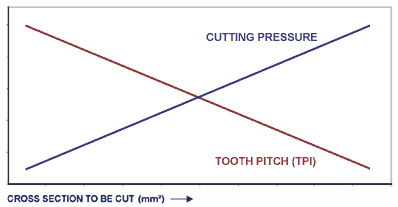

HANDLING RECOMMENDATIONS:

MATERIAL TO BE CUT	CUTTING PRESSURE	TOOTH PITCH
small cross section	lower cutting pressure	higher tooth pitch
big cross section	higher cutting pressure	lower tooth pitch

For a higher durability of the Power Hacksaw Blade it is strongly recommended to select a tooth pitch that keeps at least 3 teeth in contact with the material to be cut:

CUTTING SPEED - RECOMMENDATIONS FOR SOLID MATERIALS

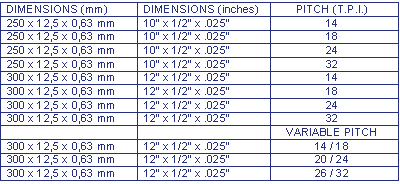

ANB's Hand Hacksaw Blades   ANB's Hand Hacksaw Blades are available in 5 different qualities:

CARBON STEEL (SUPERCUT)
A quality Hand Hacksaw Blade made from hardened alloyed carbon steel which offers low cost and high efficiency for general cutting purposes.

HSS ALL HARD (ALLHARD)
This hardened high speed steel Hand Hacksaw Blade is widely used to cut alloyed steel solids, pipes, and profiles up to 100 kg / mm².

HSS FLEXIBLE (ALLFLEX)
Full high speed steel Hand Hacksaw Blade with hardened teeth and non-hardened back. This high quality blade combines the HSS ALL HARD's cutting edge with a higher flexibility.

HSS DIAMOND (SUPERHARD)
An all hard but yet flexible high speed steel Hand Hacksaw Blade made from EMo5-V-3 for cutting high-strength materials up to 120 kg / mm².

HSS Bi-METAL (SUPERFLEX) Manufactured from finest German bi-metal strips. The HSS cutting edge is carefully hardened to HRC 66 and resistant to heat and wear. The back material supplies maximum flexiblity and shatter resistance. ANB´s SUPERFLEX is the blade that will never break.

WHEN ORDERING please indicate below information:

OR...

Just advise all relevant details on the material to be cut, like:

We will supply the most suitable blade.
